Arkitech Advanced Construction Technologies

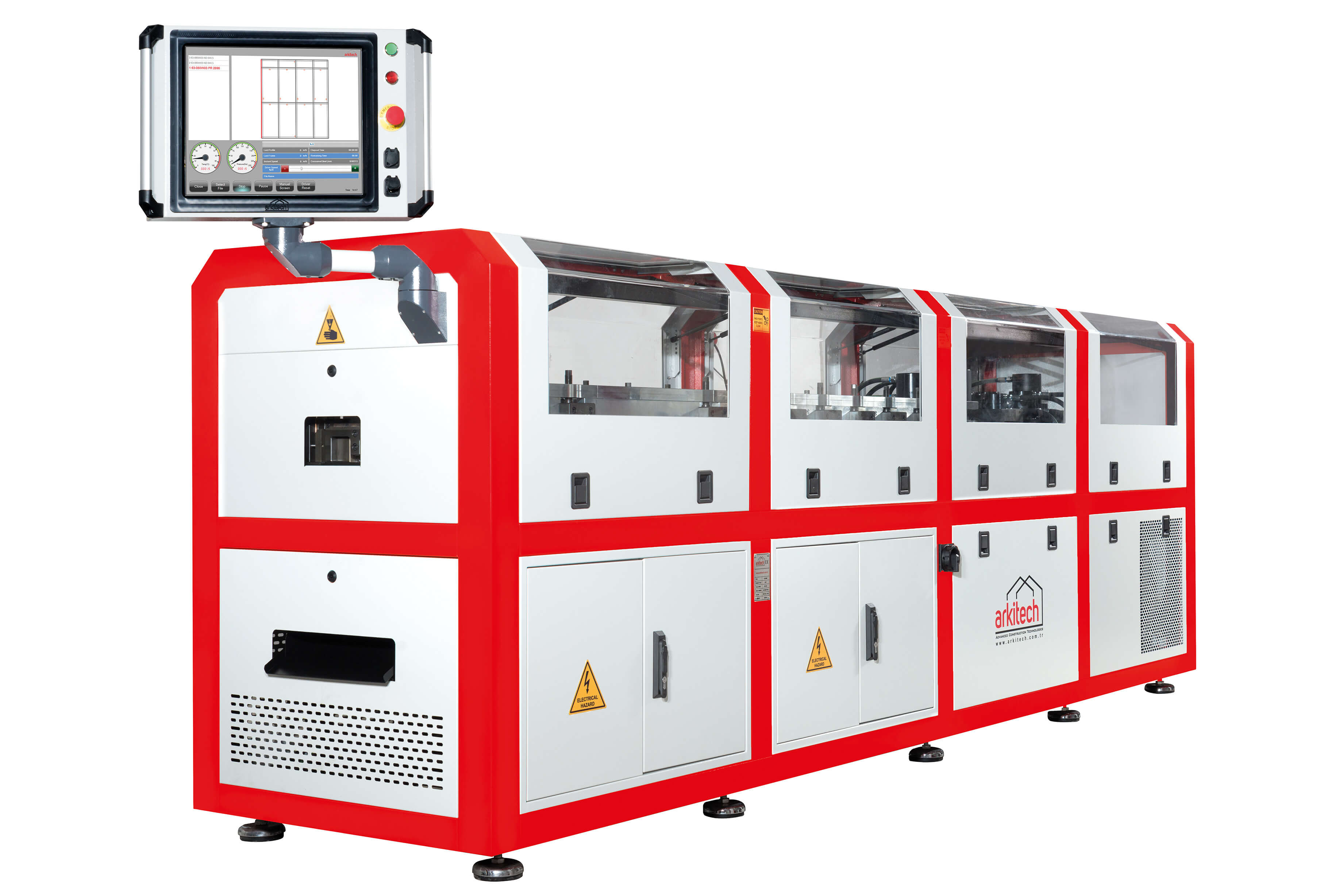

Arkitech manufactures and services one of the most complete range of modern affordable equipment for LGS builders from monoprofile C+C machines for walls, floors and roofs with profile thicknesses from 1.2 to 2 mm to multi-profile customized centers with profile thicknesses up to 3 mm.

  • Case Study
  • Partner: Arkitech
  • Date: September 2019
  • Country: Turkey
  • Type: Residential & Commercial Construction, Steel Framing

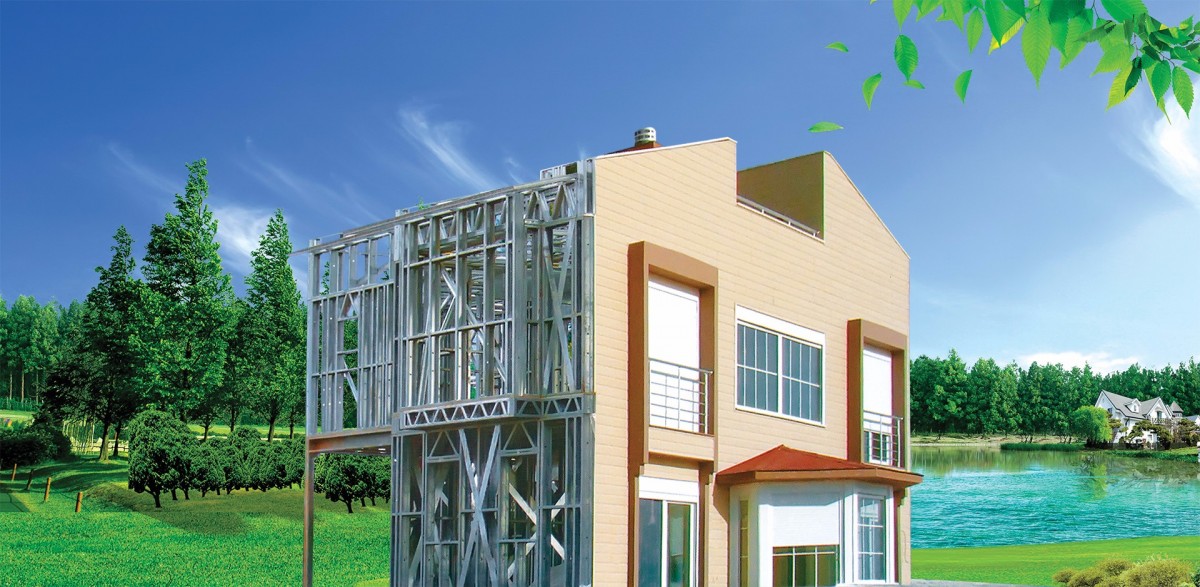

Arkitech Light Steel Framing System

Arkitech Advanced Construction Technologies (Arkitech) has long and thoroughly produced and serviced a wide range of modern equipment for construction using cold-formed steel technology. Arkitech is the largest Turkish manufacturer of a full line of machines for all types of CFS construction.

With more than 15 years of experience in the field of light steel processing, a comprehensive solution has been developed to ensure very accurate and reliable production processes. The Arkitech system guarantees lower costs than traditional construction methods, thanks to high-quality design capabilities, comprehensive material evaluation reports and low production costs.

The plant and head office are in Ankara. Due to its central location, combined with excellent road, air and sea shipping capabilities, Arkitech is able to provide cost-effective and quick access to all foreign countries. The factory employs 25 qualified staff engaged in production and customer support. After-sales service is carried out by technical support staff and technical specialists in the UK, Central Europe, Russia, India, Asia Pacific, Africa, South America and the USA.



Vertex-Arkitech Integration



In April – July 2019, Vertex software development in cooperation with Arkitech completed the integration of Vertex BD software with Arkitech automatic machine controllers.
The cooperation included the following settings and developments included:

  • setup of all tools/stations names
  • setup of tooling sizes

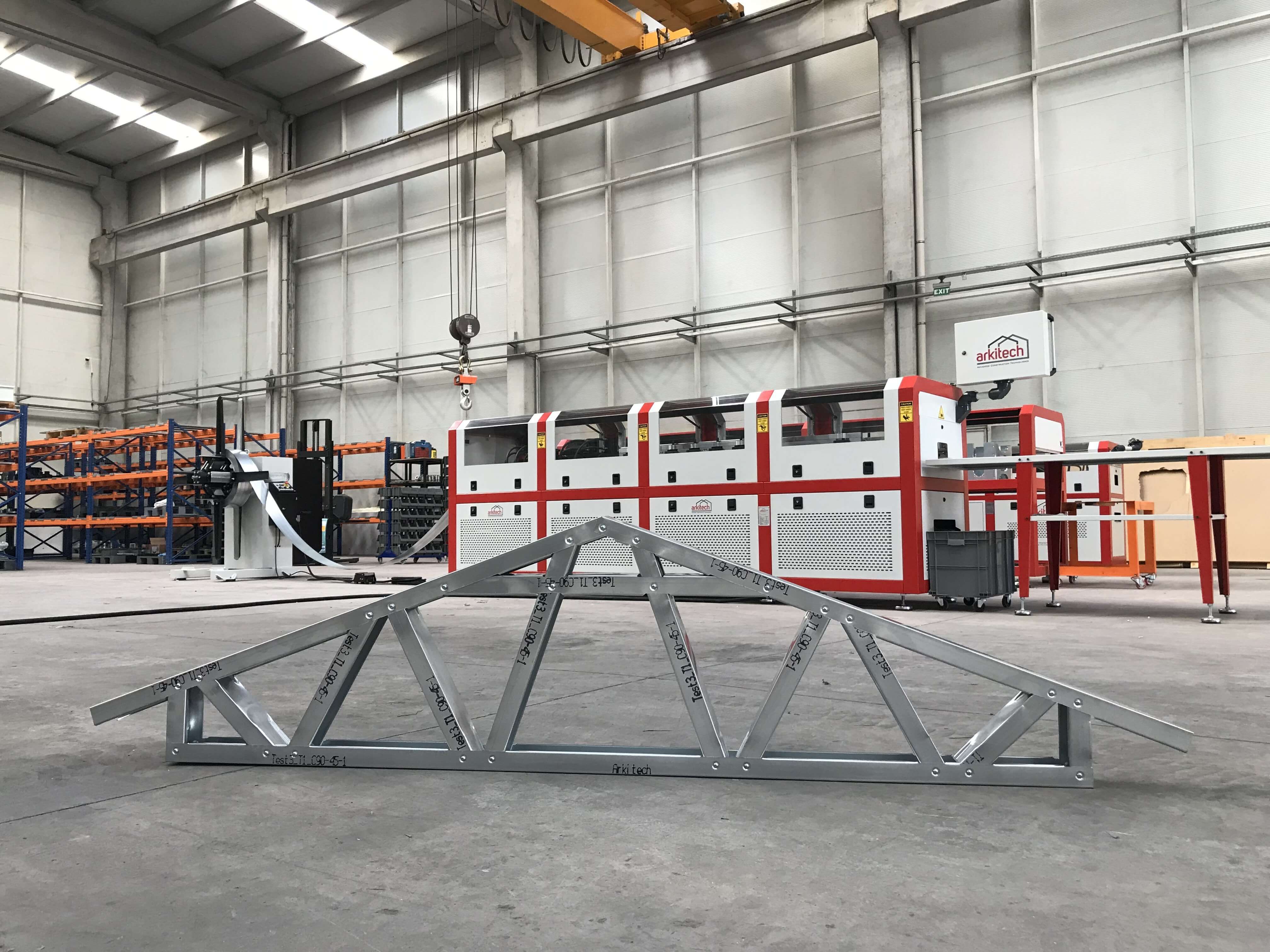

  • Arkitech profiles, wall, floor, and roof panels, as well as floor and roof trusses, were created in Vertex BD libraries
  • development and setup for 25mm fixed dimple offset, a special rule for all Arkitech profiles and machines including the correct visualization of the dimple position in 3D
  • geometric positions of profiles, included in Vertex output csv files, were tested and go visible and correct to video monitor of the machine

All settings were successfully tested on wall panels, floors and trusses.

Vertex BD software is now fully ready and configured to control the design and production process with Arkitech machines.



Vertex BD is a BIM software that can cut your detailing time in half,
while also saving you time, money, and materials on the jobsite.
Start automating your design and manufacturing processes and
